Overview

Basic Info.

Model NO.	22320EKJA/VA405 23120CCK/W33 23220CC/W33 21320EK
Bore Type	Cylindrical
Cage	Sheet Metal
Tolerance Class for Dimensions	Normal
Sealing	Without
Lubricant	None
Keywords	Spherical Roller Bearing
Bearing No.	22205ek 21307c C22209ek 21308e
Transport Package	Standard Packaging or Customized
Specification	25mmX52mmX15mm
Trademark	JD Bearing
Origin	China
HS Code	8482102000
Production Capacity	500000

Packaging & Delivery

Package Size800.00cm * 800.00cm * 1000.00cm Package Gross Weight1.000kg

Product Description

Q1: What about the MOQ? Can you accept a sample order?
A: Our company MOQ is 1pc, and we can accept sample orders.

Q2: Can you accept OEM/ODM?
A: Yes, we can.Customizing according to your requirements or drawing.

Q3: Do you supply door-to-door service?
A: By air or express(DHL, FEDEX, EMS, etc.)

Q4: Could you tell me the materials of your bearings?
A: Chrome steel, carbon steel, stainless steel, ceramic, and plastic material.

Q5: Are you a factory or trading company?
A: We have our factory, JUDONG Bearing is specializes in manufacturing and exporting bearings.

Click the name below
Deep groove ball bearings	Crossed Roller Bearings	Rod end
Double row deep groove ball bearing	Needle roller bearings	Radial spherical plain bearings
Self-aligning ball bearing	Tapered roller bearings	Stainless Steel Bearings
Angular contact ball bearings	Spherical roller bearings	Insulating bearing
Thrust ball bearings	Cylindrical roller bearing	Ceramic bearing
Pillow Block Bearing	Cylindrical roller thrust bearings	High-temperature bearings

Product Description

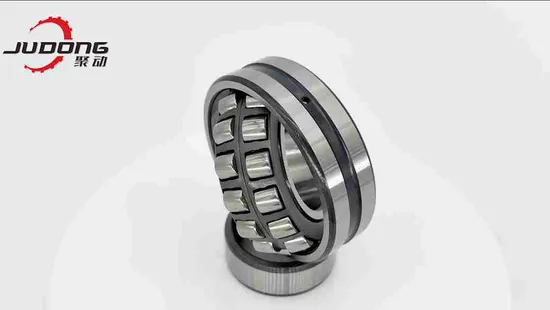

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Detailed Photos

Product Parameters

Designation	Principaldimensions			Basicloadratings		Speedratings
				dynamic	static	Referencespeed	Limitingspeed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
21318E	90	190	43	393	450	3600	4800
21318EK	90	190	43	393	450	3600	4800
22218E	90	160	40	331	375	3800	5300
22218EK	90	160	40	331	375	3800	5300
22318E	90	190	64	637	695	2600	3600
22318EJA/VA405	90	190	64	637	695	2600	3600
22318EK	90	190	64	637	695	2600	3600
22318EKJA/VA405	90	190	64	637	695	2600	3600
23218CC/W33	90	160	52.4	372	440	2800	3800
23218CCK/W33	90	160	52.4	372	440	2800	3800
21319E	95	200	45	433	490	3400	4500
21319EK	95	200	45	433	490	3400	4500
22219E	95	170	43	393	450	3600	4800
22219EK	95	170	43	393	450	3600	4800
22319E	95	200	67	699	765	2600	3400
22319EJA/VA405	95	200	67	699	765	2600	3400
22319EK	95	200	67	699	765	2600	3400
22319EKJA/VA405	95	200	67	699	765	2600	3400
21320E	100	215	47	433	490	3400	4500
21320EK	100	215	47	433	490	3400	4500
22220E	100	180	46	433	490	3400	4500
22220EK	100	180	46	433	490	3400	4500
22320E	100	215	73	847	950	2400	3000
22320EJA/VA405	100	215	73	847	950	2400	3000
22320EJA/VA406	100	215	73	847	950	2400	3000
22320EK	100	215	73	847	950	2400	3000
22320EKJA/VA405	100	215	73	847	950	2400	3000
23120CC/W33	100	165	52	385	490	3000	4000
23120CCK/W33	100	165	52	385	490	3000	4000
23220CC/W33	100	180	60.3	498	600	2400	3400

Certifications Packaging & Shipping Installation Instructions

Mounting

During handling, the rings and roller complement of spherical roller bearings may be axially displaced from their normal position. This is especially likely where the bearings are mounted with the shaft or housing in the vertical position:

• The roller complement, together with the inner or outer ring, will move downward and result in no more clearance.
• When the bearing rings expand or contract as a result of an interference fit, preload is likely to result.

Therefore, wherever possible:

• Mount spherical roller bearings with the shaft or housing in the horizontal position.
• Rotate the inner or outer ring to align the rollers during mounting. Where this is not feasible, use a bearing handling tool or other device to keep the bearing components arranged centrally.

Mounting sealed bearings

does not recommend heating sealed spherical roller bearings above 80 °C (175 °F) during the mounting process.However, if higher temperatures are necessary, make sure that the temperature does not exceed the permissible temperature of either the seal or grease, whichever is the lowest.

Mounting bearings with a tapered bore

Bearings with a tapered bore are mounted with an interference fit. To obtain the proper degree of interference, one of the following methods can be used:

1. Measuring the clearance reduction
2. Measuring the lock nut tightening angle
3. Measuring the axial drive-up
4. Applying the Drive-up Method For bearings with d > 100 mm, recommends using the Drive-up Method. This is a fast, reliable and safe method to achieve the appropriate interference fit.
5. Measuring the inner ring expansion
